W-115T / W-118T Combines up to three frequencies for multiple oscillation cleaning efficiencies.
Modular-type Ultrasonic Cleaner
W-115 / W-118 Generator / Transducer
Features
-

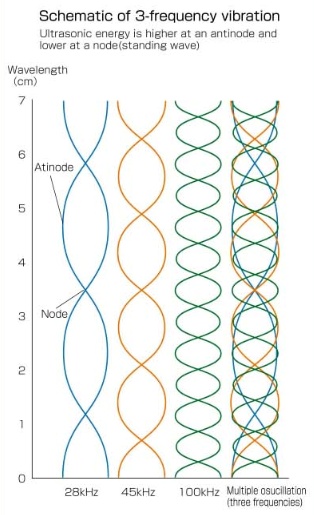

Multiple oscillation (SANPA). These systems allow for three very popular frequencies 28kHz, 45kHz and 100kHz to be used individually or in combination, to allow for cleaning of the most delicate objects. Switching the oscillation, among these three frequencies eliminates uneven cleaning which results sometimes from standing waves within the cleaning cleaning tank.
-
Repeating experiments or tests under the same conditions. Uses a single transducer for generation of three frequencies so that frequency generation is more reliable - a desirable characterstic for callibrationn testing and other applications requiring repeatability.
-
Easy operation - using programming capability. Custom programs may be stored in the system controller so that it is easy to access and implement previous regimens.
Generator Specifications
|
Model code |
W-115T |
W-118T |
|||
|---|---|---|---|---|---|
|
Oscillation mode
|
Single frequency operation / multiple frequency operation
|
||||
|
Maximum power output
|
300W (Output adjustable)
|
600W (Output adjustable) |
|||
|
Oscillation Frequency
|
28kHz --> 45kHz --> 100kHz
|
||||
|
Power
|
AC100 / 6A (AC200)50/60Hz
|
AC200V / 6A | |||
|
Power Consumption
|
600VA
|
1200VA | |||
|
I/O Interface
|
ON/OFF (Input switch)
|
||||
|
Output display
|
LED indicator (corresponding to the output)
|
||||
|
Timer
|
Total cleaning time: From 1 to 60min / continuous
Preset duration of each frequency for multiple oscillations: From 1 to 99 sec
|
||||
|
Dimensions (mm)
|
L=330 × W=430 × H=140
|
||||
|
Weight (kg)
|
6.5
|
8.5 | |||
|
External control cable
|
3.0m
|
||||
|
Power cord
|
3.5m
|
||||
Transducer Options
| S-Type: Cleaning Tank | SH-Type: Cleaning Tank w/ Heater | N-Type: Immersible Transducer | F-Type: Vibrator-plate type Transducer |
|---|---|---|---|
|
|
|
|
|
|
|
|
|
|
OPTION: S-TYPE Standard Cleaning Tank
|
Model |
S30R-M |
S60R-M |
||
|---|---|---|---|---|
|
Max. Power Input
|
300W
|
600W
|
||
|
Oscillation Frequency
|
28kHz, 45kHz, 100khz
|
|||
|
Transducer
|
Bolt clamped Langevin transducer
|
|||
|
Max. liquid temperature
|
100oC
|
|||
|
Material
|
Tank: SUS304
|
|||
|
Tank size (mm)
LxWxH
|
Inner: 300x200x250 (15L)
Outer: 352x252x380
|
Inner: 370x250x250 (23L)
Outer: 422x302x380
|
||
|
Weight (kg)
|
13.4
|
18.2
|
||
|
Output cable length
|
3.5m
|
|||
|
Available generator
|
W-115T
|
W-118T
|
||
OPTION: SH-TYPE Cleaning Tank with Heater
|
Model |
S30R-MH |
S60R-MH |
||
|---|---|---|---|---|
|
Max. Power Input
|
300W
|
600W
|
||
|
Heater
|
1kW
|
2kW
|
||
|
Oscillation Frequency
|
28kHz, 45kHz, 100khz
|
|||
|
Transducer
|
Bolt clamped Langevin transducer
|
|||
|
Max. liquid temperature
|
100oC
|
|||
|
Material
|
Tank: SUS304
|
|||
|
Tank size (mm)
LxWxH
|
Inner: 300x200x250 (15L)
Outer: 510x260x380
|
Inner: 370x250x250 (23L)
Outer: 580x310x380
|
||
|
Weight (kg)
|
18.5
|
24
|
||
|
Output cable length
|
3.5m
|
|||
|
Available generator
|
W-115T
|
W-118T
|
||
OPTION: N-Type Immersible Transducer
|
Model |
N30R-M |
S60R-M |
||
|---|---|---|---|---|
|
Max. Power Input
|
300W
|
600W
|
||
|
Oscillation Frequency
|
28kHz, 45kHz, 100khz
|
|||
|
Transducer
|
Bolt clamped Langevin transducer
|
|||
|
Max. liquid temperature
|
80oC
|
|||
|
Material
|
Case: SUS304
|
|||
|
Size (mm)
|
L=220 x W=200 x H=130
|
L=330 x W=200 x H=130
|
||
|
Weight (kg)
|
5
|
7.3
|
||
|
Output cable length
|
2.5m (Braided portion 2m) + Output cable 3.5m
|
|||
|
Available generator
|
W-115T
|
W-118T
|
||
OPTION: F-Type Vibration-Plate Type Transducer
|
Model |
F30R-M |
F60R-M |
||
|---|---|---|---|---|
|
Max. Power Input
|
300W
|
600W
|
||
|
Oscillation Frequency
|
28kHz, 45kHz, 100khz
|
|||
|
Transducer
|
Bolt clamped Langevin transducer
|
|||
|
Max. liquid temperature
|
100oC
|
|||
|
Material
|
Plate: SUS304
Packing: CR-type rubber t=mm
|
|||
|
Size (mm)
|
L=255 x W=255 (2t)
|
L=305 x W=255 (2t)
|
||
|
Weight (kg)
|
4.5
|
7
|
||
|
Output cable length
|
1m + Output cable 3.5m
|
|||
|
Available generator
|
W-115T
|
W-118T
|
||
Optional Parts for W-115/W-118
|
Cleaning Baskets
|
||||
|
Part Number
|
Related Model
|
Size (mm)
|
Material
|
Appearance
|
|
KG12
|
W-115
|
L=285 x W=185 x H=180
|
SUS304
|
 |
|
KG10
|
W-118
|
L=355 x W=235 x H=180
|
SUS304
|
|
How to order
If you need a specific quote, please request so by sending us an e-mail through "Request for Quote" by refering to the following part number or by calling us at 814-861-5688 (8:30am to 5:30pm EST). You can also directly place an order by calling us with your credit card information or sending us a Purchase Order form.
WD-Series Price List
|
Generator Code |
Transducer Code |
Part Number |
Price (USD) |
|---|---|---|---|
| W-115T | S30R-M |
W-115T + S30R-M |
$ 6,025 |
| S30R-MH |
W-115T + S30R-MH |
$ 8,340 | |
| N30R-M |
W-115T + N30R-M |
$ 6,025 | |
| F30R-M |
W-115T + F30R-M |
$ 6,025 | |
| W-118T | S60R-M |
W-118T + S60R-M |
$ 7,175 |
| S60R-MH |
W-118T + S60R-MH |
$ 11,150 |
|
| N60R-M |
W-118T + N60R-M |
$ 7,175 |
|
| F60R-M |
W-118T + F60R-M |
$ 7,175 |
|
Options |
Part Number |
Price (USD) |
|
KG10 Cleaning Basket for W-118T + S60R-M |
KG10 |
$ 225.00 |
