TULA50-180 - Tiny Ultrasonic Linear Actuator

Linear Motor

T50 200x185

Specifications

CharacteristicUnitsValueValue
Reference Mobile   M813 (L) M510 (M)
Speed mm/s >10 >10
Thrust Force gf >40 >20
Holding Force gf 100~150 100~150
Stroke mm <8 <10
Shaft Diameter2 mm Φ1.3 Φ1.0
Shaft Length1 mm <20 <22
Driving Voltage V 20~35 20~35
Driving Frequency kHz 60~80 60~80
Power Consumption @20V mW < 350 < 350
Operating Temperature C -10~600 -10~600
Storage Temperature C -30~70 -30~70
  • 1. Custom shaft length available
  • 2. 1.3 mm shaft diameter available - Code L.
  • 3. Isolated Shaft available - order code DR

Basic Dimensions

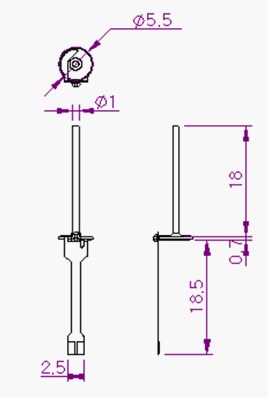

tula 50 dimension lg



pdf-icon_sm TULA 50 Specifications

Features

The TULA exploits the vibration mode of piezoelectric ceramic, the inertial principle, and the contact friction between the shaft and the mobile to produce stepped linear motion. Some of the key features include:

  • Very small size with a lightweight and simple structure
  • Variable stroke
  • Quick response
  • Intrinsic holding force
  • Excellent controllability
  • Fine positioning/High resolution
  • Quiet operation
  • No EMI

Applications of TULA Motors

The TULA motors can be used in a variety of application. such as:

  • Very small size with a lightweight and simple structure
  • Variable stroke
  • Quick response
  • Intrinsic holding force
  • Excellent controllability
  • Fine positioning/High resolution
  • Quiet operation
  • Braille module
  • Pan/tilt module of surveillance camera
  • Adjusting flow rate of valve and nozzle
  • Auto-Focus, Zoom for smart-phone

How to Order

The TULA can be purchased with any of the options listed below.

The Minimum Order Quantity (MOQ) for any of the TULA motors is 5 units.

TULA50 Options

PartDescriptionPrice (5-10)Price (11-20)Price (21-30)
TULA50-DD-180 M

Standard motor
Non-isolated shaft
18mm long
1.0 mm dia.

$84.00$51.00$41.00
TULA50-DD-180 M
with Mobile

Standard motor
Non-isolated shaft
18mm long
1.0 mm dia.
Wires and Connector

$89.00$57.00$45.00
TULA50-DD-180 M
with Wires-Connector

Standard motor
Non-isolated shaft
18mm long
1.0 mm dia.
Wires and Connector

$90.00$59.00$48.00
TULA50-DD-180 M
with Wires-Connector
Mobile

Standard motor
Non-isolated shaft
18mm long
1.0 mm dia.
Wires and Connector

$95.00$65.00$53.00
TULA50-DR-180 M
TULA50-DD/DR-180 L
TULA50-DD/DR-XXX M
TULA50-DD/DR-XXX-L

Options:
Isolated shaft
1.3mm Dia Shaft
Custom Length Shaft

Request a QuoteRequest a QuoteRequest a Quote
TULA50 MobilesOptionsDetailsDetails
M510 sm

M510 - 1.0mm Shaft
M813 - 1.3mm Shaft

 M510 Details

click here

M813 Details

click here


PartDescriptionPrice (1)Price (2-5)Price (5+)
PMC_1202_med

EV Kit
PMC-1804

$650.00$575.00Request a quote

pdf-icon_smTULA Piezoelectric Technologies Catalog (pdf)
