STC-4SS-3528-B Langevin Transducer for Cleaner

Ultrasonic Transducers

STC-4SS-3528-B
STC 4ss 3528 B med

pdf-icon_sm Data Sheet STC-4SS-3528-B

General Application

Ultrasonic Cleaning

Specifications

Parameter SpecificationRemarks
Resonant Fequency fr 28 ± 1 kHz HP-4194 Impedance Analyzer at 1Vrms
Resonance Resistance Ro < 20 ohm HP-4194 Impedance Analyzer at 1Vrms
Static Capacitance Cp 3800pF ± 10% LCR meter at 1kHz, 1Vrms
Mass g 400 g
Max Diameter D 45 mm
Length L 79.20mm
Joint Bolt   M10 x 1.0 mm
Max Instaneous Power P 50 W
Max Input Voltage V 3000 Vp-p

**Tests environmental conditions: 23 ± 3 °C; 40 ~ 70% RH

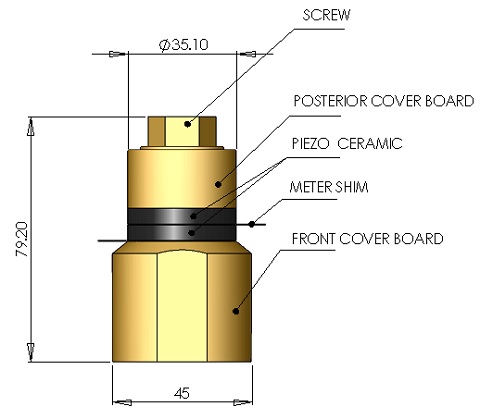

Mounting options and dimensions



STC 4SH 3528 B Dim

How to order

If you need a specific quote, please request so by sending us an e-mail through "Request for Quote" by refering to the following part number or by calling us at 814-861-5688 (8:30am to 5:30pm EST). You can also directly place an order by calling us with your credit card information or sending us a Purchase Order form.

Purchasing Options

ArticlePart NumberPrice unit

Bolt Clamped Langevin Ultrasonic Transducer

STC-4SS-3528-B

1-9: $105.00

10-24: $65.00

25-99: $50.00

**Prices are for reference and subject to change without notice!
