Selection Guide for CEDRAT Amplified Piezo Actuators (APA®)

CEDRAT Piezoelectric Actuators

Unlike conventional piezoelectric actuators with stroke being only about 0.1% of their length, APAs relies on a piezoelectric stack and on a deformable shell in order to amplify the allowed displacement. The bending behavior of the shell under piezoelectric actuation results in a continuous stress distribution leading to long lifetimes (up to 1010 cycles). Furthermore, the symmetric shape of the structure makes the actuator insensitive to twist and bend torques. Amplified ratios of up to 10 times can be achieved depending on the shape of the shell.

Model SeriesAPA uXS & APA XXSAPA XSAPA SAPA SM
Blocking Force [N] 2-6 18 40-100 100-200
No-load stroke [µm] 30-150 50-80 60-120 40-80
Strain Gauge Option   * (except 50XS) Yes Yes
Non-Magnetic Option   Yes Yes
High Temp. Option     Yes Yes
Thermo-Comp Option     Yes
Mech. Interface Option FI-H-SI FI-H-TH-SI FI-H-TH-SI FI-H-TH-SI
Electrical Interface Option Single Cu wire Two wires AWG-32 Two wires AWG-30 Two wires AWG-30
Notes Smallest actuator



Model SeriesAPA MAPA MMLAPA MLAPA LAPA XL
Blocking Force [N] 110-800 190-250 1400-1900 600-1300 700-1100
No-load stroke [µm] 16-184 280-360 90-120 250-500 500-1000
Strain Gauge Option Yes Yes Yes Yes Yes
Non-Magnetic Option Exc 400M and 900M     Yes
High Temp. Option Yes Yes Yes Yes Yes
Thermo-Comp Option   Yes
Mech Interface Option FI-H-TH-SI FI-H-TH-SI FI-H-SI FI-H-TH-FF-SI FI-H-TH-SI
Electrical Interface Option Two wires AWG-30 Two wires AWG-30 Two wires AWG-26 Two wires AWG-26 Two wires AWG-26
Notes   Medium series Stiff series   Larger actuator

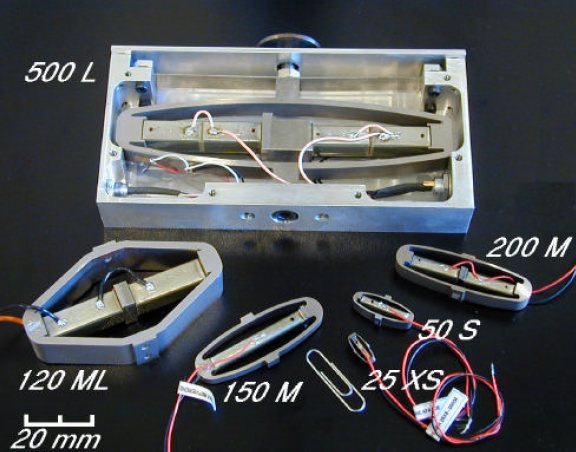

Examples of some CEDRAT APA Actuators Series
