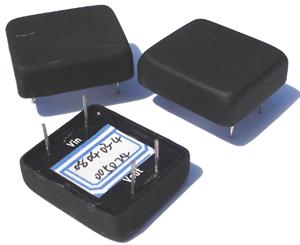

"30W Series" Step Down PTs
Piezoelectric Transformers
DATA SHEET: "30W Series" Step Down PTs

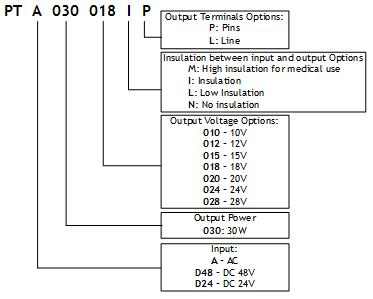

Part Number Guide
Specifications
| Model | Specifications | Remarks | ||
|---|---|---|---|---|
| Output Power Rating | Pout | 30W |
Temperature rise
< 20°C
|
|
|
Operating Temperature
|
T | -55 ~ 125°C |
|
Tested on the
metal shell
|
|
Dielectric Strength
Input to Output
|
Vb |
> 3700Vdc
during 1min
|
Leakage current
< 20uA
|
|
| Output Voltage Rating | Vout |
10V | Part No.: 030010 | |
| 15V | Part No.: 030015 | |||
| 18V | Part No.: 030018 | |||
| 20V | Part No.: 030020 | |||
| 24V | Part No.: 030024 | |||
| 28V | Part No.: 030028 | |||
|
Recommended Working
Frequency
|
Freq | 76 ~ 79 kHz |
|
|
| Input Voltage Rating | Vin | 65 ~ 75V | Part No.: 030010 |
Measured at Troom
|
| 70 ~ 90V | Part No.: 030015 | |||
| 75 ~ 90V | Part No.: 030018 | |||
| 70 ~ 90V | Part No.: 030020 | |||
| 70 ~ 90V | Part No.: 030024 | |||
| 70 ~ 85V | Part No.: 030028 | |||
| Input Static
Capacitance
|
Cin |
16 pF ± 10%
|
Part No.: 030010 |
Measured at 1kHz
and Troom
|
|
Part No.: 030015
|
||||
| Part No.: 030018 | ||||
| Part No.: 030020 | ||||
| Part No.: 030024 | ||||
|
Part No.: 030028
|
||||
|
Output Static
Capacitance
|
Cout |
530 nF ± 10% | Part No.: 030010 |
Measured at 1kHz
and Troom
|
| 235 nF ± 10% | Part No.: 030015 | |||
| 170 nF ± 10% | Part No.: 030018 | |||
| 150 nF ± 10% | Part No.: 030020 | |||
| 93 nF ± 10% | Part No.: 030024 | |||
| 68 nF ± 10% | Part No.: 030028 |
Features
- Step-down piezoelectric transformer using radial vibration.
- Non-magnetic transformer.
- Input to Output isolation.
Applications
- DC-DC Converters, CFL and Linear Fluorescent lamps ballasts.

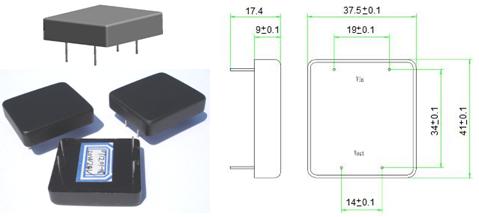

Dimensions
Purchasing Options
| Part Number | Article Description | Price |
|---|---|---|
| PT A 030 010 I P |
Step-down radial Piezo Tranformer
Pout = 30W; Vout = 10V
|
1-9 units: $ 125.00
10-99 units: $ 72.50 |
| PT A 030 015 I P |
Step-down radial Piezo Tranformer
Pout = 30W; Vout = 15V
|
|
| PT A 030 018 I P |
Step-down radial Piezo Tranformer
Pout = 30W; Vout = 18V
|
|
| PT A 030 020 I P |
Step-down radial Piezo Tranformer
Pout = 30W; Vout = 20V
|
|
| PT A 030 024 I P |
Step-down radial Piezo Tranformer
Pout = 30W; Vout = 24V
|
|
| PT A 030 028 I P |
Step-down radial Piezo Tranformer
Pout = 30W; Vout = 28V
|
How to Order
If you need a quote, please This e-mail address is being protected from spambots. You need JavaScript enabled to view it or fill our"Request for Quote" form, indicating the specific product you are interested. You can call us directly at 814-861-5688 (8:30am to 5:30pm EST).
