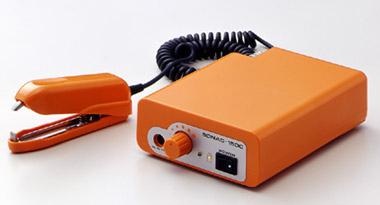

S0NAC-15DC: Ultrasonic Mini Plastic Welder

Ultrasonic Plastic Welder

SONAC-15DC DATA SHEET

Specifications

Main unit

Model	SONAC-15DC
Oscillating Frequency	57kHz
Maximum Output	20W
Power Supply	DC 14.8V
External Dimensions (mm)	Oscillator (Main unit): 129 x 171.5 x 49 (Not including protruding parts) Hand-Piece: 31.5x128x53 (Opened)
Output Cord	50cm (Spring cord)

AC Adapter

Input	100 to 240V AC 50/60Hz
Output	DC 17V 1.0A
External Dimensions (mm)	Approx. 51 x 75 x 41 (Main unit only. Not including protrusions)
Weight	Approx. 140g
Cable Length	Approx. 180cm

Features

• Sanitary operation: No needle, No adhesive
• Safety: No heating unit and no needle on operating ultrasonic welding.
• Uniform finishing: on timer control of welding time and quite
• Economy: Only need electric energy during operation. No need pre-heating.
• Easy operation: operate like an stapler.

Applications

• Welding for plastic material.
• Food package of plastic box.
• Spot welding of plastic sheet.

Ultrasonic Min Plastic Welder Easy to Carry with Carrying bag

How to Order

Request a quote of this product by sending an e-mail through "Request for Quote" by refering to the following part number or by calling us at 814-861-5688 (8:30am to 5:30pm EST).

StandPart Number: SONAC-15DC

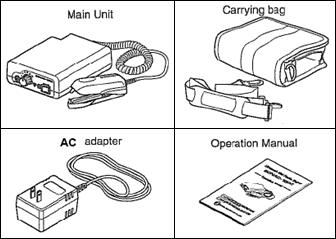

Includes: i) Main Unit; ii) Carrying bag; iii) AC adapter; iv) Operating Manual.

SONAC-15DC Purchasing Options

Part Number	Article Description	Price
SONAC-15DC	SONAC-15DC Main unit Carrying bag AC Adapter Operating Manual	$ 495.00

Optional Parts for SONAC-15DC

Part Number	Article Description	Units per case	Price
	Anvil Chip Replacement Part	1 units	Contact us
