NAC2021 (Replaces CMAP08)
Noliac Plate Actuators
NAC2021 is one of Noliac's plate actuators, which are typically used when a low displacement at high force is required. Noliac's plate actuators are cofired monolithic piezoelectric low voltage actuators that convert an electrical input to a very high-resolution linear movement at high force.
Noliac's plate actuators are manufactured with ceramic layer thickness down to 20µm as standard in order to allow very low operating voltage for full performance of the piezo material. Noliac's plate actuators are mostly made to customer specifications, but a wide range of parts is available from stock as well.
|Length/outer diameter||7 mm||± 0.15 mm|
|Width/inner diameter||7 mm||± 0.15 mm|
|Height||2 mm||± 0.05 mm|
|Operating voltage||200 V|
|Free stroke||3.3 µm||± 15%
|Blocking force||2060 N||± 20%|
|Capacitance||220 nF||± 15%|
|Maximum operating temperature||200 °C|
|Curie temperature||340 °C|
|Unloaded resonance frequency||> 486 kHz|
|External electrodes||Screen-printed Ag|

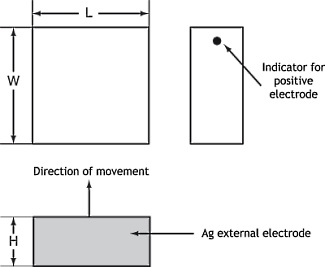

The figure below shows the typical outline of NAC Plate Actuators.
|L||Length excluding external electrodes||mm|
