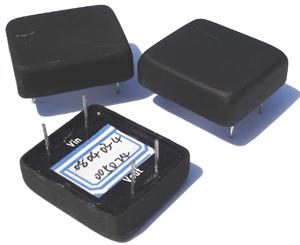

"5W Series" Step Down PTs
Piezoelectric Transformeres
"5W Series" Step Down Piezoelectric Transformers Data Sheet
SPECIFICATIONS
Items |
Specification |
Remarks |
||
Output PowerRating |
Pout | 5W |
Temperature rise < 20oC |
|
OperatingTemperature |
T | -55 ~ 125°C |
Tested on metal shell |
|
DielectricStrengthInput to Output |
Vb | > 3700Vdc / 1min |
Leakage current < 20uA |
|
Output VoltageRating |
Vout | 10V | Part No.: 020010 | |
| 15V | Part No.: 020015 | |||
| 18V | Part No.: 020018 | |||
| 24V | Part No.: 020024 | |||
Recommendedworkingfrequency |
Freq | 121 ~ 134 kHz | ||
Input VoltageWindow |
Vin | 28 ~ 50V | Part No.: 005010 |
Measured at Troom |
| 28 ~ 45V | Part No.: 005015 | |||
| 24 ~ 45V | Part No.: 005018 | |||
| 20 ~ 45V | Part No.: 005024 | |||
Input StaticCapacitance |
Cin |
4 nF ± 10% |
Part No.: 005010 |
Measured at 1kHz and Troom |
| Part No.: 005015 | ||||
| Part No.: 005018 | ||||
| Part No.: 005024 | ||||
Output StaticCapacitance |
Cout | 47.5 nF ± 10% | Part No.: 005010 |
Measured at 1kHz and Troom |
| 17 nF ± 10% | Part No.: 005015 | |||
| 12 nF ± 10% | Part No.: 005018 | |||
| 7.5 nF ± 10% | Part No.: 005024 | |||
FEATURES
- Step-down piezoelectric transformer using radial vibration.
APPLICATIONS
- DC-DC Converters, CFL and Linear Fluorescent lamps ballasts

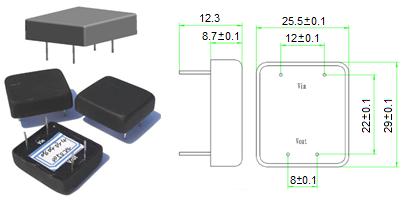

DIMENSIONS

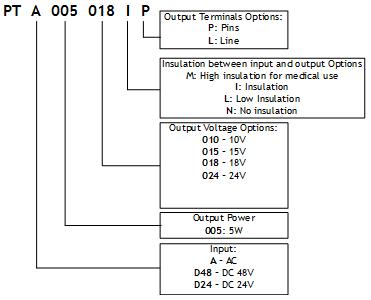

HOW TO ORDER
If you need a quote, please request so by sending an e-mail through "Request for Quote" by refering to the specific product you are interested or by calling us at 814-861-5688 (8:30am to 5:30pm EST). In order to place an order with credit card, you can call 814-861-5688.
Purchasing Options
Article |
PartNumber |
Price |
|
Step-down radial Piezo Transformer Pout = 5 W, Vout = 10 V |
PT A 005 010 IP |
1-10: $125.00
11-25: $95.00
26-50: $65.00
51-100: $40.00 |
|
Step-down radial Piezo Transformer Pout = 5 W, Vout = 15 V |
PT A 005 015 IP | |
|
Step-down radial Piezo Transformer Pout = 5 W, Vout = 18 V |
PT A 005 018 IP | |
|
Step-down radial Piezo Transformer Pout = 5 W, Vout = 24 V |
PT A 005 024 IP |
