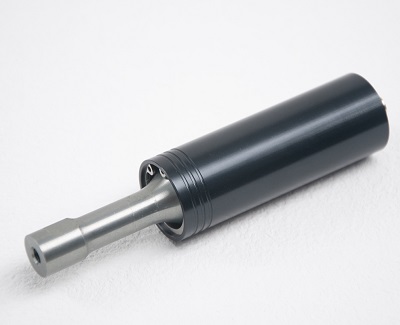

20kHz 300W Transducer-AL Housing
Sino Sonic Ultrasonic Transducers
Specifications:
| Specification | Value |
|---|---|
| Frequency (Fs ± 0.5kHz) | 20 kHz |
| AL Housing - Dia x Lgth | 32 mm x 90 mm |
| Total Length | 140 mm |
| Flange Size | N/A |
| PZT Ring Diameter | 20 mm |
| Number of PZT Rings | 4 |
| Impedance | 20 Ohms |
| Capacitance (C±10%pF) | 3.3 nF |
| Input Power - Max | 300 Watts |
| Amplitude | 30 um p-p |
| Joint Bolt Size | M6 or M8 |
| Net Weight | 187 gms |
How to order
If you need a specific quote, please request it by sending us an e-mail through "Request for Quote" by referring to the part number or by calling us at 814-861-5688 (8:30am to 5:30pm EST). You can also directly place an order by calling us with your credit card information or sending us a Purchase Order form.
