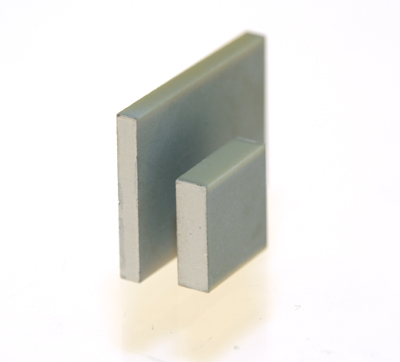

Plate Actuators (NAC2000)

Noliac Piezo Actuators

• More about linear actuators
• Mount and connect NAC Plate Actuators



Specifications on standard Noliac multilayer piezo CMAP's:

Product Type	Length	Width	Height	Max. Voltage	Free Stroke	Blocking Force
Replaces ()	[mm]	[mm]	[mm]	[V]	[µm]	[N]
NAC2001	2	2	2	60	3.0	168
NAC2002 (CMAP01)	3	3	2	60	3.0	378
NAC2003 (CMAP02)	5	5	2	60	3.0	1050
NAC2011 (CMAP12)	2	2	2	150	3.3	168
NAC2012 (CMAP03-06)	3	3	2	150	3.3	378
NAC2013 (CMAP04-07)	5	5	2	150	3.3	1050
NAC2014 (CMAP05)	7	7	2	150	3.3	2060
NAC2015 (CMAP09)	10	10	2	150	3.3	4200
NAC2021 (CMAP08)	7	7	2	200	3.3	2060
NAC2022 (CMAP09)	10	10	2	200	3.3	4200
NAC2023 (New)	15	15	2	200	3.3	9450
NAC2024 (CMAP10)	3	3	2	200	1.9	290
NAC2025 (CMAP11)	5	5	2	200	1.9	800

CLICK ON UNIT NAME FOR MORE DETAILS

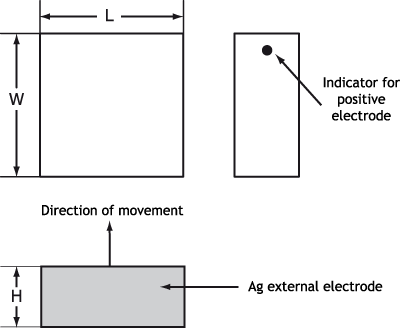

Typical Outline

The figure below shows the typical outline of the NAC Plate Actuators

Symbol	Parameter	Unit
L	Length excluding external electrodes	mm
W	Width	mm
H	Height	mm
