Step Down Piezoelectric Transformer - 20W Series
Piezoelectric Transformers

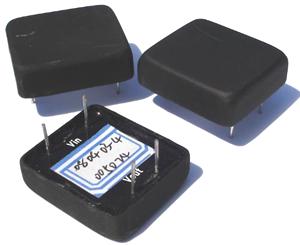

"20W Series" Step Down Piezoelectric Transformers
Specifications
| Items | Specification | Remarks | ||
|---|---|---|---|---|
| Output Power Rating | Pout | 20W | Temperature rise < 20 °C | |
| Operating Temperature | T | -55 ~ 125°C | Tested on metal shell | |
| Dielectric Strength (Input to Output) | Vb | > 3700Vdc / 1min | Leakage current < 20uA | |
| Output Voltage Rating | Vout | 10V | Part No.: 020010 | |
| 15V | Part No.: 020015 | |||
| 18V | Part No.: 020018 | |||
| 20V | Part No.: 020020 | |||
| 24V | Part No.: 020024 | |||
| 28V | Part No.: 020028 | |||
| Recommended working frequency | Freq | 88 ~ 92 kHz | ||
| Input Voltage Window | Vin | 50 ~ 70V | Part No.: 020010 | Measured at Troom |
| 65 ~ 85V | Part No.: 020015 | |||
| 55 ~ 75V | Part No.: 020018 | |||
| 60 ~ 80V | Part No.: 020020 | |||
| 60 ~ 80V | Part No.: 020024 | |||
| 60 ~ 80V | Part No.: 020028 | |||
| Input Static Capacitance | Cin | 11.5 pF ± 10% | Part No.: 020010 | Measured at 1kHz and Troom |
| Part No.: 020015 | ||||
| Part No.: 020018 | ||||
| Part No.: 020020 | ||||
| Part No.: 020024 | ||||
| Part No.: 020028 | ||||
| Output Static Capacitance | Cout | 300 nF ± 10% | Part No.: 020010 | Measured at 1kHz and Troom |
| 130 nF ± 10% | Part No.: 020015 | |||
| 85 nF ± 10% | Part No.: 020018 | |||
| 75 nF ± 10% | Part No.: 020020 | |||
| 55 nF ± 10% | Part No.: 020024 | |||
| 38 nF ± 10% | Part No.: 020028 | |||
Features
- Step-down piezoelectric transformer using radial vibration.
Applications
- DC-DC Converters, CFL and Linear Fluorescent lamps ballasts
Dimensions

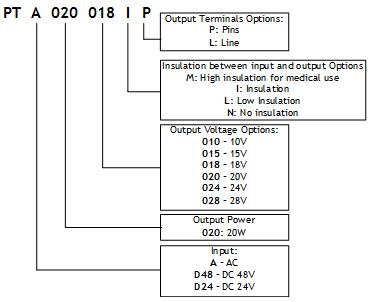

How to order
Request a quote of this product by sending an e-mail through:
by refering to the product part number or by calling us at 814-861-5688 (8:30am to 5:30pm EST). In order to place an order with credit card, you can call 814-861-5688.
Purchasing Options
| Part Number | Description | Price |
|---|---|---|
| PT A 020 010 IP | Step-down radial Piezo Transformer Pout = 20 W, Vout = 10 V |
1-9 Units: $200.00
|
| PT A 020 012 IP | Step-down radial Piezo Transformer Pout = 20 W, Vout = 12 V |
|
| PT A 020 015 IP | Step-down radial Piezo Transformer Pout = 5 W, Vout = 15 V |
|
| PT A 020 018 IP | Step-down radial Piezo Transformer Pout = 5 W, Vout = 18 V |
|
| PT A 020 020 IP | Step-down radial Piezo Transformer Pout = 5 W, Vout = 20 V |
|
| PT A 020 024 IP | Step-down radial Piezo Transformer Pout = 5 W, Vout = 24 V |
|
| PT A 020 028 IP | Step-down radial Piezo Transformer Pout = 5 W, Vout = 28 V |
